The end of winter as we've known it?
This dataset and content is provided our by our friends at Data Nuggets. Visit DataNuggets.org to see the original activity and additional materials
Featured scientist: Forrest Howk, Bayfield High School. Written by: Richard Erickson, Bayfield High School and Hannah Erickson, Boston Public Schools
Background:
As a boy growing up in Bayfield, Wisconsin, Forrest was familiar with the seasonal rhythms of Lake Superior and the nearby Apostle Islands. Forrest watched each year as ice formed in the Bayfield Harbor, stopping the boat traffic each winter. Eventually, as the ice thickened even more, an ice road would open between Bayfield and LaPointe. The small town of LaPointe is located on Madeline Island just over two miles from the shore of Bayfield. When the ice road opens, it frees the island residents from working around the ferry schedule and they can drive on the ice to get to the mainland.
Forrest in front of the ferry that takes residents from the mainland town of Bayfield, and LaPointe, located on Madeline island.
Forrest standing in front of the ice road that forms between Bayfield and LaPointe each winter, preventing ferry traffic but allowing cars to travel between the mainland and the island.
As a senior at Bayfield High School, Forrest became interested in conducting a scientific study related to the ice season on Lake Superior. He knew that Lake Superior plays a vital role in the lives of people who live and work on its shores and therefore all sorts of data are recorded to help understand and take care of it. Based on his own observations and comments of other area residents, Forrest thought that winters were getting shorter. He wanted to know whether the length of the ice season was changing over time. Forrest turned to historical data to answer his question.
Forrest’s first stop on his quest to find data was the Madeline Island Ferry Line, a company that operates the ferries between Bayfield and LaPointe. Since 1970, the ferry line has kept yearly records of the date on which the last ferry traveled between Bayfield and LaPointe before the water was too frozen for travel. They also recorded the date on which the first ferry traveled the channel when ice melted in the spring. That gave Forrest a start, but he wanted data that would date farther back than 1970.
Luckily, Forrest’s father, Neil, was an interpretive ranger for the Apostle Islands National Lakeshore. Neil showed Forrest local newspaper archives that were stored in the basement of their headquarters building. News about shipping and fishing have beenimportant to the people in the community throughout history, so it was common to find articles referencing the first and last boat of each year. Looking back through newspaper records, Forrest and Neil were able to collect data for almost every year dating back to 1857!
Armed with these data, Forrest began his analyses. He chose to define the length of the ice season as the time between the last boat each winter and the first boat each spring. This also represents the time during which there was no boat navigation due to ice cover. Forrest’s next step was to choose how to quantify the dates. He decided to use Julian dates, which start with January 1 as Day 1 and continue to count up by 1 for each day. This means that January 31 would be Day 31, February 1 would be Day 32, and March 1 would be Day 61. After assigning Julian dates to each historical data point, Forrest subtracted the day of the last boat from the day of the first boat to find the number of days without boat traffic each year. This number serves as a consistent way to estimate the length of the ice season each year. Winter begins in one calendar year but ends in the next, so Forrest identified the year based on the calendar year that the winter began.
Scientific Question: Is the length of the Bayfield harbor ice season changing over time?
Scientific Data:
Click on the graph tab, and explore the available variables. What data will you graph?
Independent variable(s): _______________________. Dependent variable(s):________________________
Create the graph(s) of your data, and paste your graph(s) below:

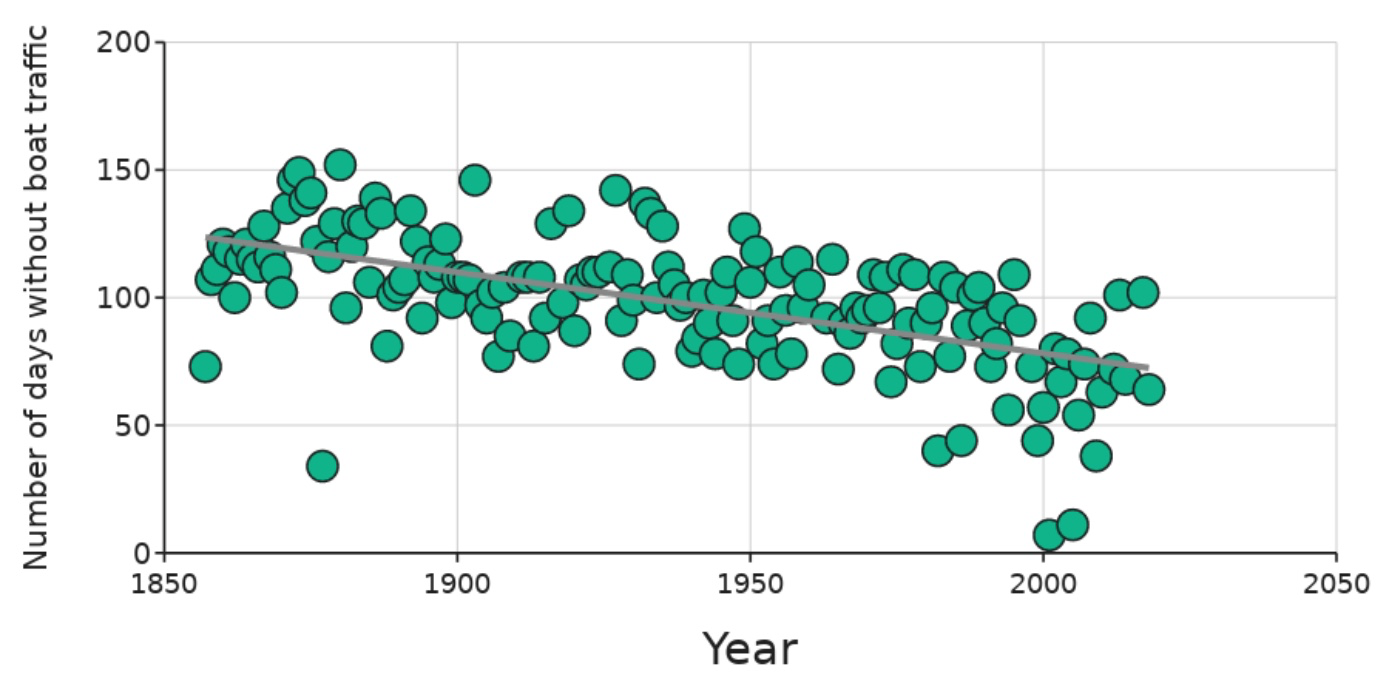

3. Add a line of best fit with the Regression line check box. Refer to your graph as evidence in your answer. Paste your graph(s) and your regression line values, below:
4. Identify any changes, trends, or differences you see in your graph. Include your graph and specifically refer to it when describing those changes, trends, or differences.
Interpret the Data:
5. Make a claim that answers the scientific question.
6. What evidence was used to write your claim? Reference specific parts of the tables or graph.
7. Explain your reasoning and why the evidence supports your claim. Connect the data back to the relationship between boating traffic in Bayfield Harbor and ice cover
Your next steps as a scientist:
8. Science is an ongoing process. What new questions do you think should be investigated? What future data should be collected to answer your question?
These questions are a digital extension of the original Data Nuggets activity. The data manipulation and graphing tasks within are best completed here on DataClassroom.
9. Add a line of best fit with the Regression line check box in the graph you have drawn above. Paste the equation below and explain what each of the parameters mean in the equation below.
10. Is this relationship significant? Tabulate results from your statistical test below and reference it in your description.
11. Based on the equation, predict in what year would the average ice season have zero days. What would that mean for navigation in the winter season?
12. Given the data, one could also plot the Julian day of the first and last boat of the season to visualize how the duration of winter season has changed over the years. Paste a graph with the corresponding regression lines, and equations below.
12. Describe what trends you observe in the graphs above and what the trend-lines indicate.
13. Scientists suggest that the winter season has not only become shorter but also more unpredictable in the recent 20 to 30 years. Considering data only from 1995 onwards, replot the graph with the regression lines and paste the equation and figure below. Explain how this differs from the overall equations and how it may suggest that the weather has become more erratic.
